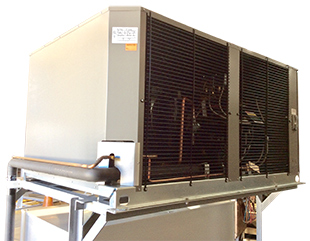

5 Ton Flake Ice Machine


Model DER26F-5T


Capacity: 10,000 lb (4535 kilos) of flake ice in 24 hours. *
Refrigeration: 404-A


Unit Sizes
  Single Deck Double Deck Remote - Evaporator Remote - Condenser
DIMENSIONS: 119”x 78”x 46”H 70”x 50”x 89”H 64”x 30”x 39”H 49”x 68-5/16”x 36-3/8”H
WEIGHT: 2500 lbs 2500 lbs 1100 lbs 1275 lbs
*Ice production based on 60 degree (F) water and 70 degree (F) ambient temperature.
Electrical Specifications
Model Compr. HP Volts Phase Cycles Total Unit Amps Minimum Circuit Ampacity
DER26F-5T: 10 HP Discus low temp 208/230V 3 60 59.4 70.0

A-1 Refrigeration Co. employs highly trained and talented engineers that create premium ice machines. Additionally, A-1 only uses parts from top-of-the-line stainless steel distributors. Each machine boasts superior welding, construction, and is thoroughly checked and inspected by an exclusive seven-day testing period that will ensure each machine achieves its full output potential.

All A-1 Flake Ice Machines have the following features:


  • USDA Approved
  • No Solid Ice Mass
  • Cools Faster than other non-A-1 Refrigeration Co. machines
  • Safety controls
  • Easy Maintenance
  • No defrost necessary
  • Stainless Steel Evaporator Drum
  • Stainless Steel Cutter
  • Stainless Steel Adjustable Ice Scraper Blades
  • Stainless Steel Chute
  • Stainless Steel Safety Plate
  • Machine frame welded and hot-dipped galvanized
  • Safety microswitch
  • Stainless Steel water tank
